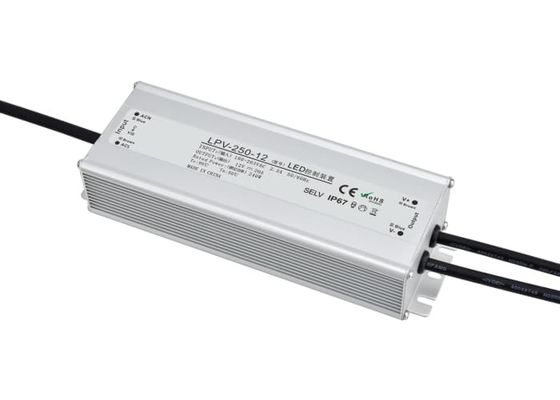

IP67 Waterproof Input 230VAC Switching Power Supply Output 12V/24V/48V 250W LED Power Supply

IP67 Waterproof Input 230VAC Switching Power Supply Output 12V/24V/48V 250W LED Power Supply

Description

  The XH-LPV-250W Series is a waterproof AC-to-DC LED driver power supply designed with constant voltage and constant power output. It operates on a wide AC input voltage range of 180~264VAC and offers a full range of output options including 12V, 24V, 36V, and 48V.

  With a conversion efficiency of up to 93%, it features a fan-less design that operates via natural air convection cooling within a case temperature range of -20°C to +60°C. The metal housing and high IP65/IP67 protection rating make the XH-LPV-250W Series suitable for both indoor and outdoor applications. It is equipped with a long-life aluminum electrolytic capacitor rated at 105°C.

The XH-LPV-250W comes with comprehensive protection functions and a 5G vibration resistance capability. It complies with safety regulations such as UL1012 and EN60950-1, and meets the energy-saving requirements of next-generation LED lighting, providing a cost-effective solution for various LED lighting applications.

Key Advantages

• Constant Voltage & Constant Power Mode Output.
• 180~264VAC – Wide AC input voltage range.
• Protection Features: Short circuit / Overload / Overvoltage / Over-temperature protection.
• Natural Air Cooling.
• Fully Enclosed Aluminum Housing.
• Full Potting, meets IP65/IP67 protection rating, suitable for both indoor and outdoor installation.
• Suitable for dry, humid, and rainy environments.
• 100% Full-Load Burn-in Tested.
• High efficiency, long lifespan, and high reliability.
• 3-year warranty
